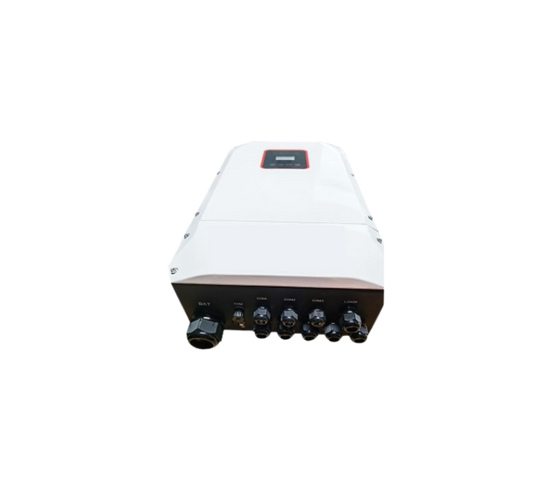

Atlas Hybrid Inverter 10KW
Atlas Hybrid Inverter
10kw
The Atlas Hybrid ON/OFF-Grid Inverter is a 48V Low-voltage all-in-one inverter.
A Hybrid inverter is an intelligent inverter that enables the storage of excess solar energy in a battery for self-use. Hybrid inverters function like a common grid-tie solar inverter but can generally operate in one of several different modes depending on the application, this includes battery backup mode which provides a limited level of backup power in the event of a blackout.
48V Low-voltage all in one Inverter
1 MPPT tracker/strings up to 13000 watts of Solar
120/240 split phase, 208 (2/3phase) 230 (single phase)
Quick Installation
Remote monitoring
Ip65 rated
UL Certification 1741SA
9.55” D X 16.62” W X 29.08” H
Battery Communication
Most hybrid inverters can also operate without a battery and function just like a grid-tie solar inverter by exporting excess solar energy to the utility grid. Our inverters have all the key components for solar and battery storage in one simple plug-and-play inverter.
Hybird inverters in general, are much lower in cost and easier to install compared to more complex battery storage systems which often require multiple inverters.
Hybrid Inverter Operating Modes
Most hybrid inverters can be programmed to function in four different modes:
Grid-tie mode - Functions like a normal solar inverter (no battery)
Hybrid mode - Stores excess solar energy during the day to be used in the evening to increase self-sufficiency.
Backup mode - Functions like a normal solar inverter when the grid is connected and automatically switches to backup power mode during a grid outage
Off-grid mode* - Operates much like an off-grid inverter and uses excess solar to charge the battery and power the loads without a grid connection.
* Only a select few hybrid inverters are designed to be used for off-grid solar power systems and can start and run a backup power source if required.
*An External automatic transfer switch may be required
Title | Main Image | Brand | Features | Product Type | Voltage | Measurements |
---|---|---|---|---|---|---|
Atlas Hybrid Inverter 12KW | Atlas Energy Solutions LLC | Grid Tied or Off-Grid |Battery Storage Inverter | AC Coupling | Atlas Hybrid Inverter | 12kw | 9.55”D X 16.62”W X 29.08”H | |
Atlas Hybrid Inverter 10KW | Atlas Energy Solutions LLC | Grid Tied or Off-Grid |Battery Storage Inverter | AC Coupling | Atlas Hybrid Inverter | 10kw | 9.55”D X 16.62”W X 29.08”H | |
Atlas Hybrid Inverter 8KW | Atlas Energy Solutions LLC | Grid Tied or Off-Grid |Battery Storage Inverter | AC Coupling | Atlas Hybrid Inverter | 8kw | 9.55”D X 16.62”W X 29.08”H | |
Atlas Hybrid Inverter 5KW | Atlas Energy Solutions LLC | Grid Tied or Off-Grid |Battery Storage Inverter | AC Coupling | Atlas Hybrid Inverter | 5kw | 9.55”D X 16.62”W X 29.08”H |
